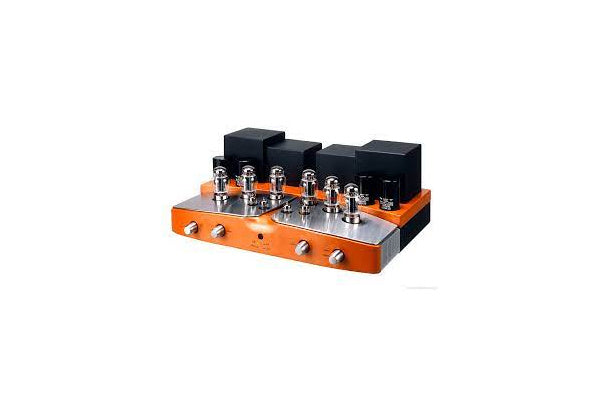

Unison Performance

Integrated Dual Mono 40-watt class A with tube output stage with n. 3 6550/KT88 per channel

Features

• Improved design from the original Performance
• Single-ended parallel, ultra linear dual mono integrated valve amplifier
• Hand built in Italy
• 40W output per channel
• KT88 valves used in sophisticated output stage design
• 4Ω and 8Ω loudspeaker terminals
• Simply Phono upgrade power supply built-in
• RC2 remote included

Specifications

• Type: Dual mono Stereo Integrated Valve Amplifier
• Output Stage: parallel single ended ultralinare A class
• Output Power: 40 W
• Inputs: 4 line, 1 tape
• Input Impedance: 47 kOhm
• Outputs: 1 tape, loudspeakers bi-wiring
• Output Impedance: 4 – 8 ohm
• Feedback factor: 16 dB
• Frequency Response: 20 Hz – 30 kHz
• Valves: 6 x 6550/KT88 , 2 x ECC82 , 2 x ECC83
• Power Consumption: 500VA max
• Dimension: 60cm x 48cm x H 23,5 cm
• Net Weight: 50 Kg /110lb
