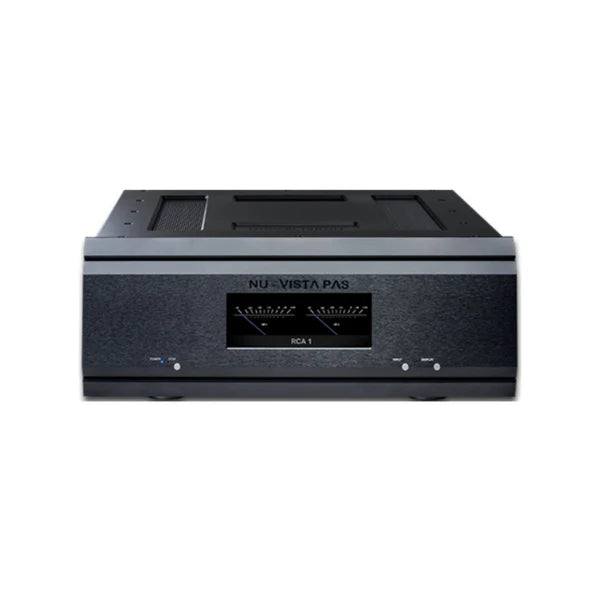

Musicla Fidelity Nu-Vista PAS - Power Amplifier

Amplifier

• High output power, greater than 300W into 8 ohms, 500W into 4 ohms, 1000W peaks into 2 ohms
• Output Voltage: 49 Volts RMS
• Output Current: 130 Amps peak to peak
• Damping factor: 200
• Output devices: 5 pairs per channel
• Gain: 16x (23.5 dB)
• THD+N: < 0.003 % typical, 20Hz to 20 kHz
• Signal / noise ratio: >108dB ‘A’-weighted
• Channel separation: >96dB
• Input impedance: 100 k Ohms
• Input sensitivity for full output: 3 Volts RMS
• Frequency response: + 0, –1dB, 5Hz to 50 kHz

In & Output

• 4 fully independent inputs: 2x RCA & 2x XLR
• 2 loop through outputs: 1x RCA & 1x XLR
• Speaker outputs: 2 pairs 4mm banana plug/binding posts
• Trigger input and output: 3.5mm mono jack socket
• Trigger level ±5V to ±12V

General Information

• Weight PAS: 27kg net (35kg)
• Dimensions PAS (WxHxD): 483 x 187,5 x 475 (494 with connectors)
• Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
• Consumption <0.5W in standby mode; 130W on and idle; 1060W maximum
