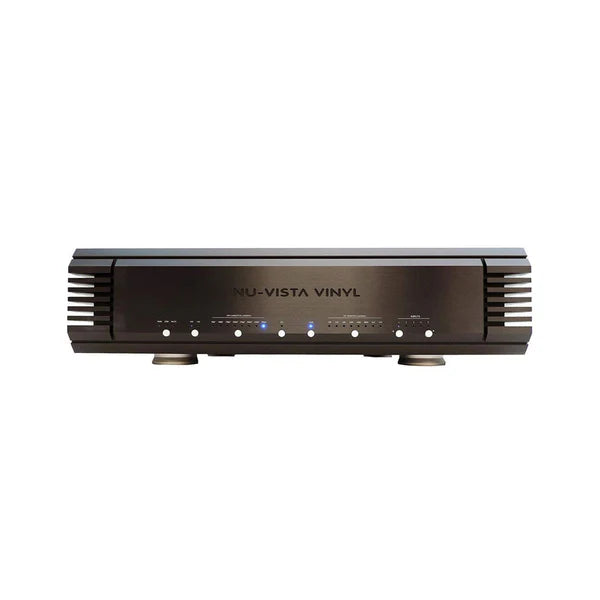

Musical Fidelity Nu-Vista Vinyl - Phono Stage

MM input

• Frequency response - RIAA or RIAA/IEC (selectable) ±0.2dB
• Input sensitivity - 2.5mV in for 300mV out (at 1 kHz)
• Input impedance - 47KΩ
• Input capacitance - 50-400pF selectable
• THD at 1 kHz - &lt:0.01%
• Overload margin - 31dB
• Signal to noise ratio - >102dB

MC input

• Frequency response - RIAA or RIAA/IEC (selectable) ±0.2dB
• Input sensitivity - 250μV in for 300mV out (at 1 kHz)
• Input impedance - 10Ω to 47KΩ selectable
• Input capacitance - 470pF fixed
• THD at 1 kHz - &lt:0.01%
• Overload margin - 31dB
• Signal to noise ratio - >95dB

Outputs (RCA/XLR)

• 1 pair RCA (phono) - left and right 300mV nom 10V max
• 1 paiir XLR (balanced) - left and right 600mV nom 20V max

Power requirement

• Mains voltages - 230V/115V Internally set or 100V optional. AC 50/60Hz
• Consumption - 30 Watts maximum.

Standard accessories

• Mains lead 10 Amp IEC

Weight

• Unit only, unboxed - 14.5kg
• In shipping carton & inc. accessories - 20.6kg

Unit dimensions

• Wide - 482 mm
• High, including feet - 130 mm
• Deep (front to back) including terminals - 385 mm
