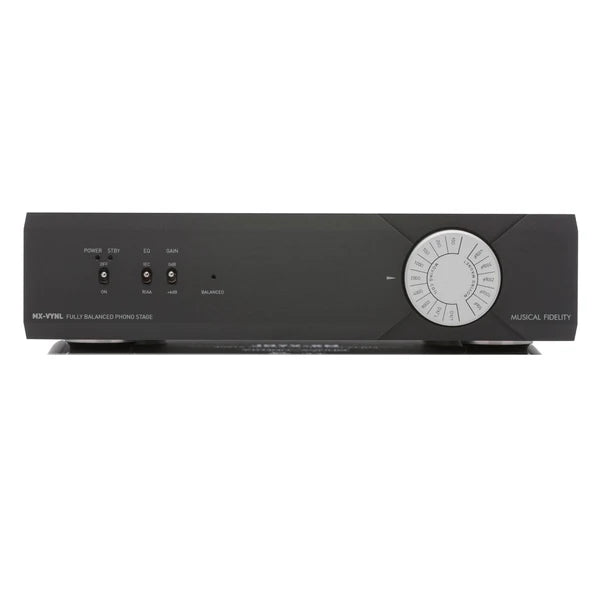

Musical Fidelity MX Vinyl - Phono Stage

Output

• 4 Volts RMS single ended from RCA sockets
• 8 Volts RMS balanced from XLR sockets

Performance

Frequency response: RIAA ±0.1dB IEC ±0.1dB

Moving Magnet (MM)

• Channel separation: < -86dB
• SNR: >101dB
• THD: < 0.007%
• XLR input: 5mV / 2.5mV selectable
• 70mV max (23dB headroom)

Moving Coil (MC)

• Channel separation: < -83dB
• SNR:>98dB
• THD: < 0.01%
• XLR input: 0.8mV / 0.4mV selectable, 12mV max (24dB headroom)

Inputs

• Balanced Mini-XLR
• RCA 1 pair RCA sockets

Outputs

• Balanced XLR male sockets EIA Standard RS-297-A
• RCA 1 pair RCA sockets

Power

• Connector: 1.3mm pin DC power jack
• Outboard power supply: 12V/500mA DC
• Mains voltages 100-240VAC 50-60Hz universal worldwide supply
• Consumption < 8 watts

Weight

Weight (unpacked / packed): 1.9Kg / 2.4 Kg

Dimensions

• Width 220 mm (8⅔”)
• Height (including feet) 53 mm (2”)
• Depth (front to back) 215 mm (8½”)

Included Accessories

• Mains adaptor
• Manual
