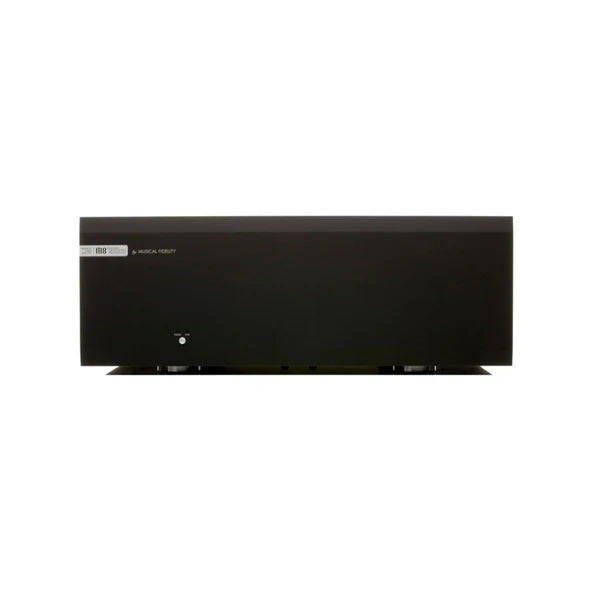

Musical Fidelity M8s-700m - Power Amplifier

Performance

• Power output: 700 Watts per channel into 8 Ohms (28 dBW)
• THD(+ noise): <0.005% typical
• Signal to Noise Ratio: >120dB
• Frequency Response: +0, –1dB, 10Hz to 80kHz

Inputs

• 2x RCA Phono Line Level
• 1x Line level XLR Balanced
• 1x Trigger input 3.5mm (1/8”) mono jack ±4.5 to ±15V DC

Output

• Power:700 Watts per channel into 8 Ohms (28 dBW)
• Voltage:78 Volts RMS, 20Hz to 20 kHz; onset of clipping (220 Volts peak-to-peak)
• Current peak-to-peak:350 Amps
• Damping factor:210
• Output devices:10 pairs

Standard accessories

IEC type mains lead (10-Amp type)

General

• Dimensions - WxHxD (mm): 440 x 160 x 460
• Weight (unpacked / packed): 30 kg / 35.5 kg
