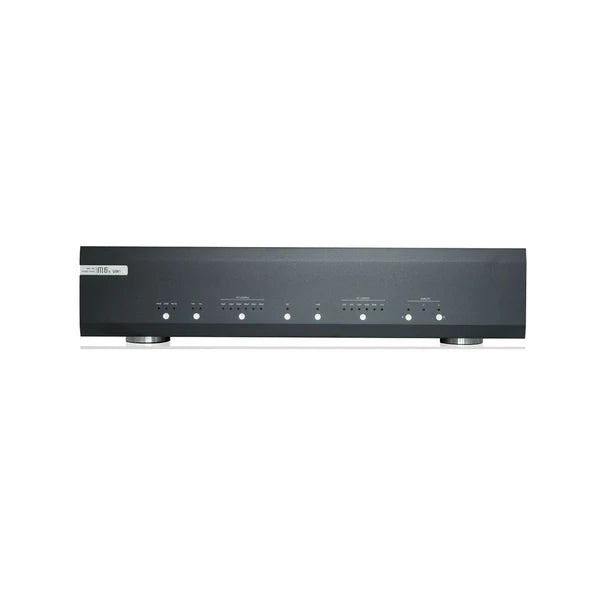

Musical Fidelity M6X Vinyl - Phono stage

MM Input

• Frequency response: RIAA or RIAA/IEC ±0 .2dB
• Input sensitivity: 5mV in for 500mV out (at 1kHz)
• Input impedance: 47KΩ
• Input capacitance: 50-400pF selectable
• THD at 1 kHz: <0.005%
• Overload margin: 26dB
• Signal to noise ratio: >101dB

MC Input

• Frequency response: RIAA or RIAA/IEC ±0.25dB
• Input sensitivity: 500μV in for 500mV out (at 1kHz)
• Input impedance: 25Ω to 1,2KΩ selectable
• Input capacitance: 470pF fixed
• THD at 1 kHz: <0 .02%
• Overload margin: 26dB
• Signal to noise ratio: >90dB

Outputs (RCA/XLR)

• 1 pair RCA: left and right 500mV nom 10V max
• 1 pair XLR (balanced): left and right 1V nom 20V max

Power requirement

• Mains voltages: 230V/115V Internally set or 100V optional. AC 50/60Hz
• Consumption: 20 Watts maximum. <0 .5W in standby (orange LED on)

Standard accessories

• Mains lead: 10 Amp IEC

Weight and Dimensions

• Unit only, unboxed: 5.5 kg
• In shipping carton & inc . accessories: 11 kg
• W x H(incl. feet) x D(incl. terminals): 440 x 100 x 385mm
