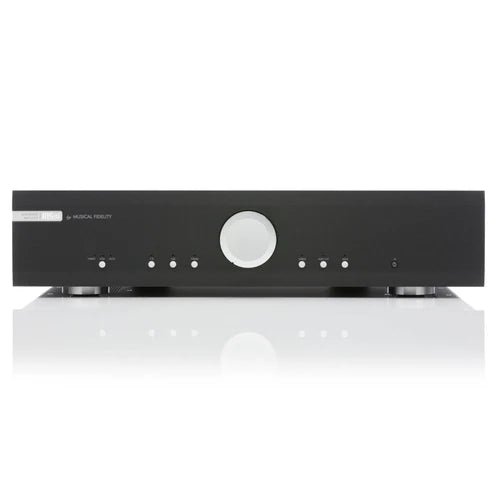

Musical Fidelity M5Si - Integrated Amplifier

Amplifier

• Power output: 150 Watts per channel into 8 Ohms
• THD (+ noise): <0.010 % typical 20Hz - 20 kHz
• Signal to Noise Ratio: >100dB ‘A’ - weighted
• Frequency Response: +0, –0.1dB, 10Hz to 20 kHz

Inputs

• 4x Line Level RCA
• 1x USB type ‘B’ connector - asynchronous data stream at up to 24-bit/96kHz
• 1 x MM phono input
• Trigger in

Phono Input

• Sensitivity: 3mV nominal (MM)
• Signal / noise ratio: >70dB ‘A’-weighted
• Input impedance: 50k Ohms (MM)
• Frequency response: RIAA/IEC ±0.5dB 20Hz-20kHz

Outputs

• Trigger out
• Fixed, line level output
• Variable, preamp output

General

• Dimensions - WxHxD (mm): 440 x 100 x 405
• Weight (unpacked / packed): 14.6 kg/ 18.8 kg
