Model
|

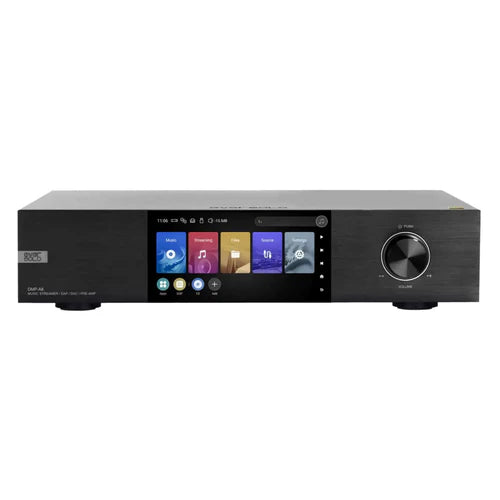

EVERSOLO DMP-A8
|
|
Display
|
6" LCD touchscreen
|
|
Internal Memory
|
4GDDR4 +64GeMMC
|
|
DAC
|
AK4191EQ+AK4499EX
|
|
Audio Processor
|
XMOS XU316
|
|
Op-amp Chip
|
OPA1612
|
|
Power Supply
|
High-quality, low-noise linear + digital dual power supply
|
|
SSD
|
Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn't included).
|
|
USB-A Port
|
USB3.0*2
|
|
Ethernet
|
RJ-45(10/100/1000Mbps)
|
|
WiFi
|
WiFi 2.4C+5C dual band
|
|
Playback and DAC Decoding
|
Support up to stereo DSD512, PCM 768KHz 32Bit
|
|
Music Service
|
Tidal, Cobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, U
|
|
Streaming
|
Air Play, DLNA, Tidal Connect etc.
|
|
Bluetooth Audio Input
|
BLuetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
|
|
USB-B Audio Input
|
Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768
|
|
Optical/Coaxial Audio Input
|
Support up to stereo PCM 192KHz 24Bit, Dop64
|
|
HDMI ARC
|
Support up to stereo PCM 192KHz 24Bit
|
|
Analog preamp audio input
|
XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB
|
|
USB Audio Output
|
Support up to stereo DSD512, PCM 768KHz 32Bit
|
|
IIS Output
|
Support up to stereo DSD512, PCM 768KHz 32Bit
|
|
Optical/Coaxial Audio Output
|
Support up to stereo PCM 192KHz 24Bit, Dop64
|
|
Analog Audio Output
|
Preamp Audio Output:XLR(Balanced)+RCA(UnBalanced)
|
|
XLR Output Audio Characteristics
|
-
Output level: 4.2V
-
Frequency response: 20Hz~20KHz(‡0. 25dB)
-
Dynamic range: > 128dB
-
SNR: >128dB
-
THD+N: <0.00009%(-120dB) @No-wt
-
Crosstalk: >-121dB
|
|
RCA Output Audio Characteristics
|
-
Output level: 2.1V
-
Frequency response: 20Hz~20KHz (10. 25dB)
-
Dynamic range: > 125dB
-
SNR: >125dB
-
THD+N: <0.00010%(-119dB)@A-WT
-
Crosstalk: > 121dB
|
|
Control Method
|
Mobile App, Touch screen control, IR+Bluetooth remote control
|
|
PSU
|
AC 110~240V 50/60Hz
|
|
Rated Power
|
16W
|
|
Dimensions
|
W 388mm*L 248mm* H 90mm
|
|
Packing List
|
Power cable*, Remote Control*1, Screwdriver*, user manual*
|
