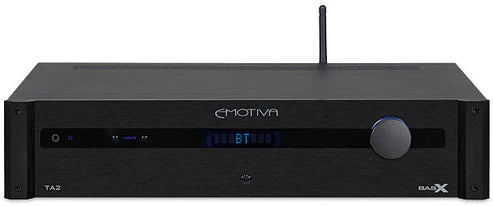

Emotiva BasX TA2 Integrated Amplifier

Analog Inputs

• 4 pairs - stereo analog line level inputs (Analog 1 thru Analog 4).
• 1 pair - stereo phono inputs (switchable; moving magnet or moving coil).
• 1 set – Home Theater Bypass inputs (front main channels plus subwoofer).
• Tuner - FM (with external antenna input; 15 station presets).

Digital Inputs

• 1 - digital coax (S/PDIF); 24/192k.
• 2 - digital optical (Toslink); 24/192k.
• 1 - digital USB (DAC input); 24/192k.
• 1 - Bluetooth receiver up to 96k (Bluetooth 5, with AptX, AptX HD, and AAC support, antenna included).

Preamp Outputs

• 1 pair - line level main outputs (can be configured to be either Full Range or Bass Managed; Bass Managed has 12 dB/octave active analog high-pass filter with cutoff configurable between 40 Hz and 200 Hz.)
• 1 - summed subwoofer output (can be configured to be either Full Range or Bass Managed; Bass Managed has 12 dB/octave active analog low-pass filter with cutoff configurable between 40 Hz and 200 Hz.)
• 1 - high performance stereo headphone output.
