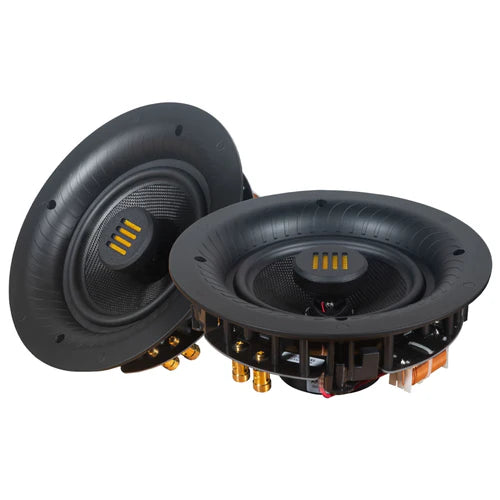

Emotiva Airmotiv Vaulta - In-Ceiling Loudspeaker

Frequency Response

 60 Hz - 30 kHz +/- 3 dB.

Driver Complement

• High-frequency driver: 25 x 25mm Airmotiv folded ribbon tweeter.
• Low-frequency driver: 6-1/2 inch woven fiber cone mid/woofer with NBR roll surround.

Crossover frequency

3.7 kHz.

Crossover slope

12 dB / octave.

Nominal impedance

8 Ohms.

Efficiency

85 dB / 1 watt.

Power handling capability

150 watts, nominal.

Terminals

Gold plated spring return push button.

Mounting cutout diameter:

8 inches.

Mounting frame diameter

9 inches.

Grill diameter

9-1/4 inches.

Minimum depth clearance required

4 inches (measured from the front surface of the ceiling).

Maximum mounting thickness

1-1/8 inches (maximum thickness of ceiling material).

Grill thickness

1/4 inch (measured from the front surface of the ceiling).

Weight

4.2 pounds.
