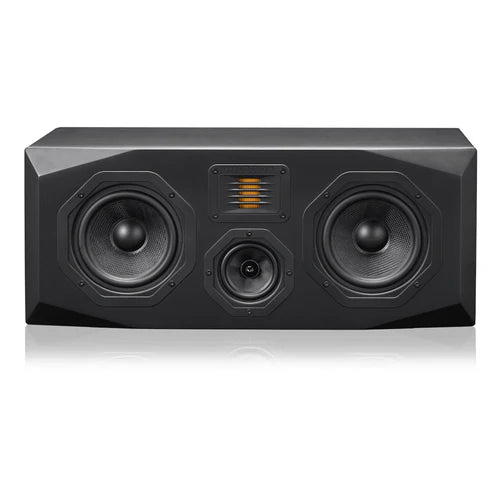

Emotiva Airmotiv C1+ Center Speaker

Configuration

Three-way center-channel loudspeaker

Cabinet tuning

Sealed

High frequency driver

25×32 mm Airmotiv folded ribbon tweeter

Midrange drivers

3” woven fiber cone

Low frequency drivers

5-1/4” woven fiber cones (2)

Efficiency

89 dB (2.83V/1m)

Power handling

120W continuous / 250W peak

Recommended amplifier power

75W – 350W / channel

Nominal impedance

4 ohms

Frequency response

50 Hz – 28 kHz (+3/-3 dB)

Crossover (midrange / tweeter)

2600 Hz, 12 dB / octave

Crossover (woofer / midrange)

550 Hz, 12 dB / octave

Terminals

Dual speaker terminals for bi-amping or bi-wiring

Dimensions

8-3/8” high x 20-1/2” wide x 8-1/4” deep . 14” long x 25” wide x 14” high (boxed)

Weight

• 18.6 pounds (unboxed)
• 24 pounds (boxed)

Mounting

Shelf or stand mounted; shock absorbing rubber bottom pad

Grille

Black cloth over a rigid frame;  attaches securely with powerful magnets for easy removal
