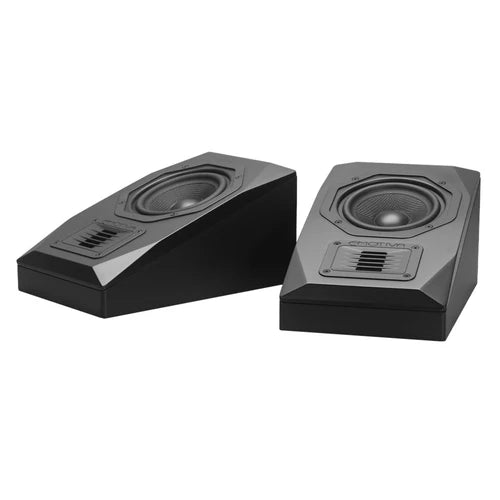

Emotiva Airmotiv A1 - Atmos Height Speaker - Pair

High frequency driver

32 mm Airmotiv folded ribbon tweeter

Low frequency driver

4 inch woven fiber cone

Cabinet type

Sealed

Efficiency

85 dB (2.83V/1m)

Power handling

60W continuous / 120W peak

Frequency response (switch in flat position)

75 Hz - 28 kHz (+3/-3 dB)

Boost (switch in +3 dB position, recommended for reflection mode)

Approximately +3 dB @ 7 kHz.

Dimensions

10 inches long x 6-1/8 inches wide x 5-1/8 inches thick. Weight: 7.5 pounds

Mounting

• (configuration #1):  Wall mounted (rear bracket with keyway and rubber feet provided).
• (configuration #2):  Facing upwards to reflect off ceiling (rubber feet provided)

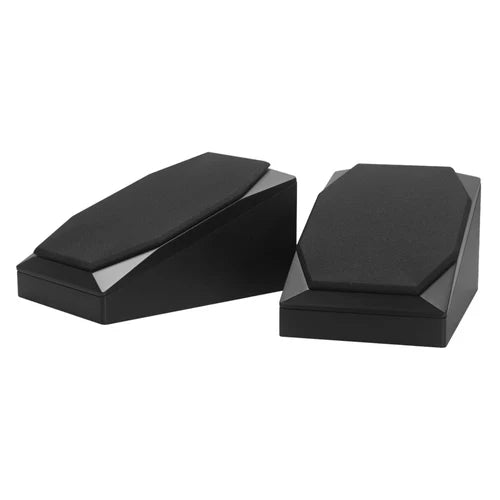

Grille

Black cloth over a rigid frame; attaches securely with powerful magnets for easy removal. (Two interchangeable grills provides: flat grill and contoured directivity control grill)
