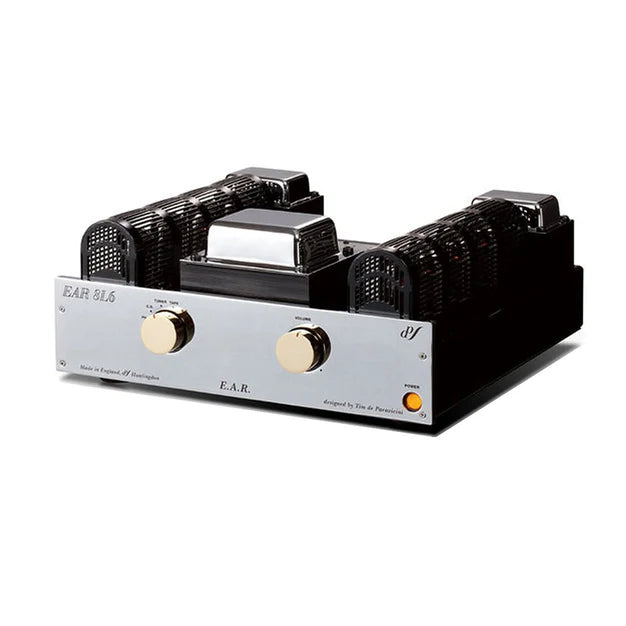

EAR 8L6

Specifications

• Vacuum Tube Selection- 6L6, EL34, or KT66
• Power Output- 50 watts/channel (30 Hz - 15 kHz at 1% THD)
• Power Consumption- 200 watts total
• Inter-modulation Distortion- Less than 1% at any level from 10mW to 50 Watts
• Output Damping Factor- 12
• Power Bandwidth- 15Hz- 40 kHz at less than 3% THD
• Input Sensitivity- 200mV
• Signal to Noise Ratio- 85dB
• Input Impedance- 47k Ohms
• Inputs/Outputs- 6 pair RCA inputs, 1 tape output, 1 pair loudspeaker terminals
• Size- Width 16'' (405mm), Depth 16'' (405mm), Height 6'' (150mm)
• Weight- 20kg
