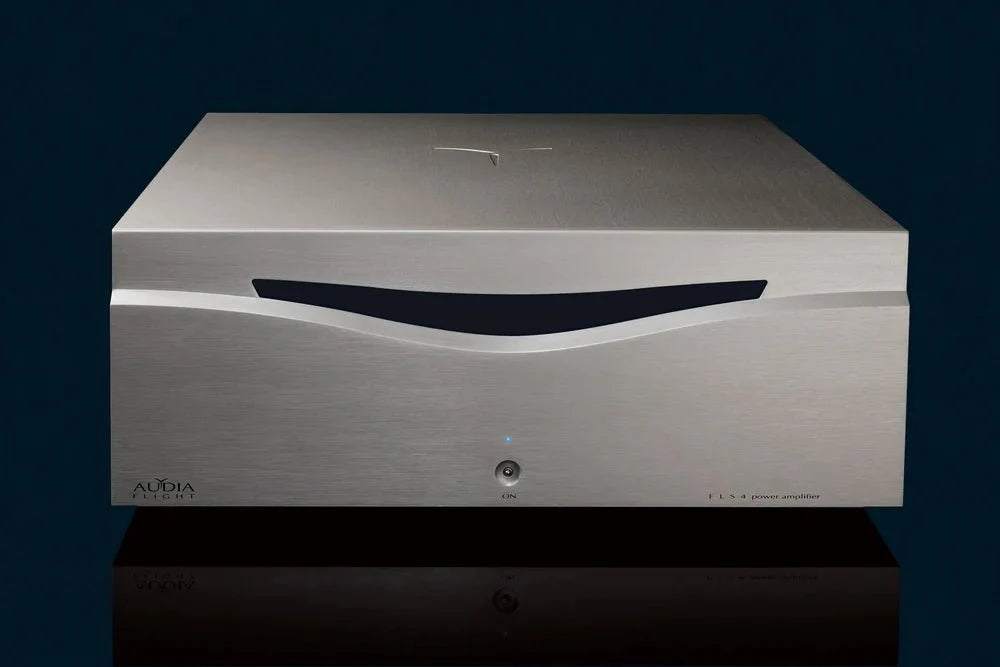

Audia Flight FLS4

General Specifications

• Output Power (8 Ohms):200 Watts RMS
• Output Power (4 Ohms):380 Watts RMS
• Output Power (2 Ohms):700 Watts RMS
• Gain:29 dB
• Input Sensitivity:1.41 Volts RMS
• Frequency Response:0.3 Hz - 0.7 MHz
• Slew Rate:> 160 V/µS
• Total Harmonic Distortion (THD):< 0.05%
• Signal-to-Noise Ratio (S/N Ratio):110 dB
• Input Impedance Unbalanced:7.5 kOhm
• Input Impedance Balanced:7.5 kOhm
• Damping Factor:> 650
• Main Voltage AC:100, 110-115, 220-230, 240 V
• Stand-by Power Consumption:< 1W
• Nominal Power Consumption:170W
• Power Consumption (full power):840W
• Dimensions (Product):450x180x440mm (W x H x D)
• Weight (Product):34kg
• Dimensions (Shipping):575x310x545mm (W x H x D)
• Weight (Shipping):45kg

Additional Features

• Bandwidth:> 0.7MHz
• Speaker Driving Capability:Nearly unlimited
• Chassis Material:Ultra-high-grade bespoke aluminum cast
• Finishing:Hand-finished mirror polishing and shot peening
• Anodization:Yes
• Circuitry:Fully balanced
• Power Devices:32 high-grade
• Main Power Supply Capacitors:288,000µF
• Gain Stage Design:Class A current-feedback circuitry
• Gain Stage Enclosure:Aluminum box encapsulated in epoxy resin
• Independent Power Supplies per Channel:Two super high current
• Stabilized Independent Stages per Channel:Four
• Logic Control Transformer:15VA toroidal
• Output Stage Power Supply:No fuses, current sensor read by microprocessor
• Toroidal Audio Transformer:2000VA encapsulated by epoxy resin
