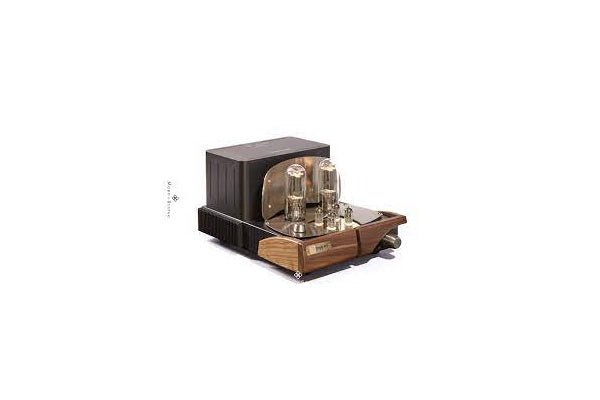

Unison Simply 845

Specifications

• Type Integrated tube amplifier
• Tubes 2 x 845 selected, 4 x ECC82/12AU7 selected
• Class Pure class A
• Output stage topology Single-ended
• Maximum power 23W
• Bandwidth 20Hz-50kHz, +0dB; -1dB @ 12W
• Feedback level 14 dB
• Output impedance 6 Ω
• Input impedance 47 kΩ/100pF
• Inputs 4 line level
• Outputs 1 tape, 1 subwoofer
• Power consumption 300VA
• Sizes (Without packaging) 37 cm x 26cm x 57 cm (LxHxD) 14 1/2 x 10 1/4 x 22 1/2  inch
• Weight 30.5 kg – 67 Ibs
• Mains fuses 5x20mm – 3.15 AT, 220
