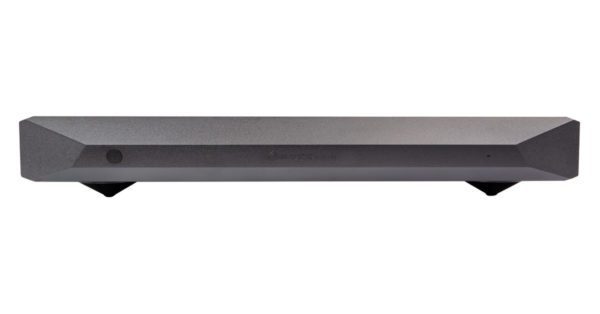

NuPrime Evolution STA Power Amplifier

Specifications:

• Power Output (RMS): 230W @ 8 Ohms , 310W @ 4 Ohms
• Power Output (peak): 270W @ 8 Ohms , 360W @ 4 Ohms
• Gain: x21
• Sensitivity (to rated power): 2Vrms
• Input Impedance: 47K Ohms
• Furutech FP900 RCA input connectors and Eichmann binding post.
• EVO STA WATT / THD / S/N (typical) : @5W (0.0025% ,95db) , @50W (0.007% , 105db) , @100W (0.01% , 110db)
• Frequency Response: 10Hz to 50kHz (-3dB)
• Trigger IN and OUT
• Standby Power : 1.5W @ 115V outlet, 1.7W @ 230V outlet
• Idle Power : 24W @ 115V outlet, 26W @ 230V outlet
• Worldwide AC voltage: (115VAC / 230VAC) with Voltage Select Switch
• AC Fuse : Slow blow , 7A , 250VAC
• Dimension : 430mm x 372mm x 66.5mm
• Weight : 10.5Kg
• Package Dimension: 642mm x 594mm x 254mm
• Package Weight : 14Kg
