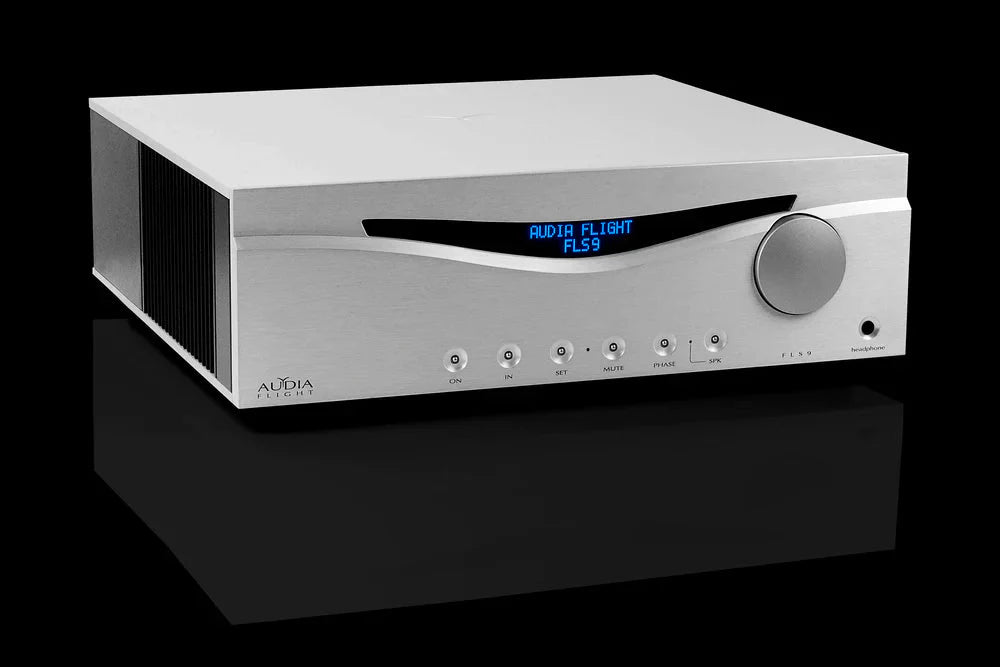

Audia Flight FLS9

Audio Specifications

• Power Output (8 Ohms):150 watts
• Power Output (4 Ohms):290 watts
• Power Output (2 Ohms):500 watts
• Frequency Response:0.3 Hz to 500 kHz (-3dB)
• Total Harmonic Distortion (THD):< 0.05%
• Signal-to-Noise Ratio (S/N):110 dB
• Damping Factor:> 500 (on 8 ohm)

Connectivity

• Unbalanced Inputs (RCA):3
• Balanced Inputs (XLR):2
• Unbalanced Outputs (RCA):1
• Balanced Outputs (XLR):1
• REC Out (Unbalanced RCA):1

Control and Interface

• Gain Range:-90dB to +10dB
• Gain Resolution:0.5dB
• Display:Large OLED blue display
• Remote Control:Solid aluminum milled

Power Specifications

• Stand-by Power Consumption:< 1 watt
• Power Consumption:650 watts (150W RMS @ 8 Ohm both channels)
• Main Voltage AC:100, 110-115, 220-230, 240 V (50-60Hz)

Physical Characteristics

• Dimensions:450 x 150 x 440 mm (W x H x D)
• Weight:25.5 kg
• Shipping Weight:31 kg
• Available Finishes:Silver and black

Construction and Design

• Chassis Material:Aluminum with engraved 'Audia Flight' logo
• Vibration Control:Four special composite pads with NBR rubber spheres

Additional Features

• Power Devices:12 highly selected
• Power Supply Circuits:8 with extra low impedance and very low noise
• Capacitors:High-quality (120,000 uF)
• Printed Circuit Boards:Special with extra thick copper layer
• Transformer:1000 W shielded audio toroidal
• Loudspeaker System Compatibility:Suitable for less efficient, impedance-critical systems (down to 2 ohm)

Optional Features

• Phono Board:MM and MC unbalanced inputs
• DAC Board:Asynchronous USB input (32 bit 384KHz and DSD 512), 4 digital inputs (2x optical, 1x AES/EBU, 1x SPDIF) 32bit, 192KHz
